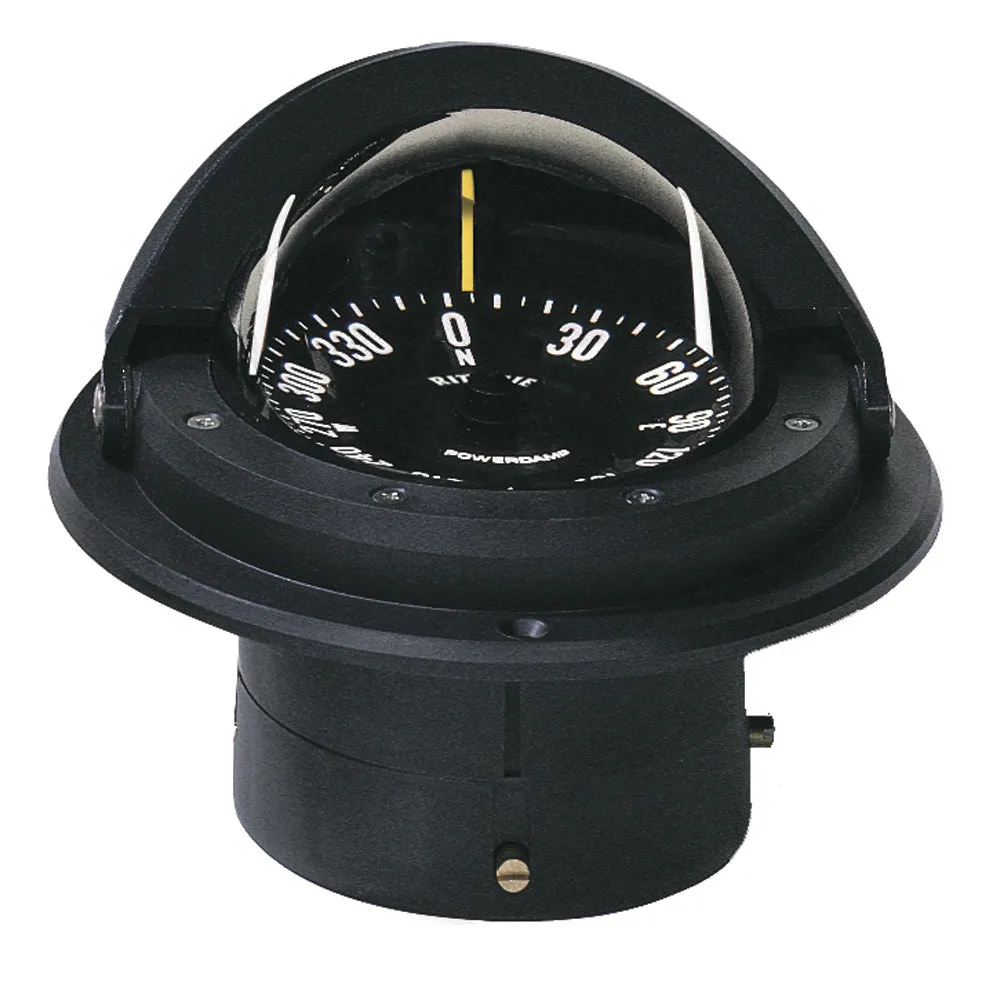

Voyager Compass
Features:
- 3″ (76 mm) PowerDamp Flat Dial
- Easily Installed into a 3 1/2″ hole
- Exclusive Built-in Green NiteVu Night Illumination
- Built-in Compensators to Easily Adjust for Deviation
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Powerful DirectiveForce Magnets for Fast Heading Lock-on
- Movable Sun Shield
- 45 Degree Lubber Lines
- High Temperature Composite Construction for Extended Operating Range
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 1lb 8oz (680g)
Notes:
All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.
Specifications:
- Read: Rear
- Mounting Style: Flush
- Lubber Lines: Yes
- Backlight: Yes
- Box Dimensions: 5"H x 6"W x 6"L WT: 1.4 lbs
- UPC: 010342140005
Quick Guide (pdf)
Owner's Manual (pdf)
