- ✔Super compatible: Dimmable led driver 12V Compatible with most wall dimmers like Lutron, Leviton, ABB and higher end Lighting control systems, also compatible with 12 volt, low-voltage LED dimmers; also compatible with constant voltage 12volt LED products like 12V LED strip lights other LED accent lights
- ✔Strong stability: Dimmable led driver flexible start, MCU control dimming process is better with no AC flicker high efficiency and stable performance.
- ✔Strong and Durable: Input and output orange cover isolation dustproof protection, the dimmable led driver 12V are the best choice for outdoor landscape lighting.

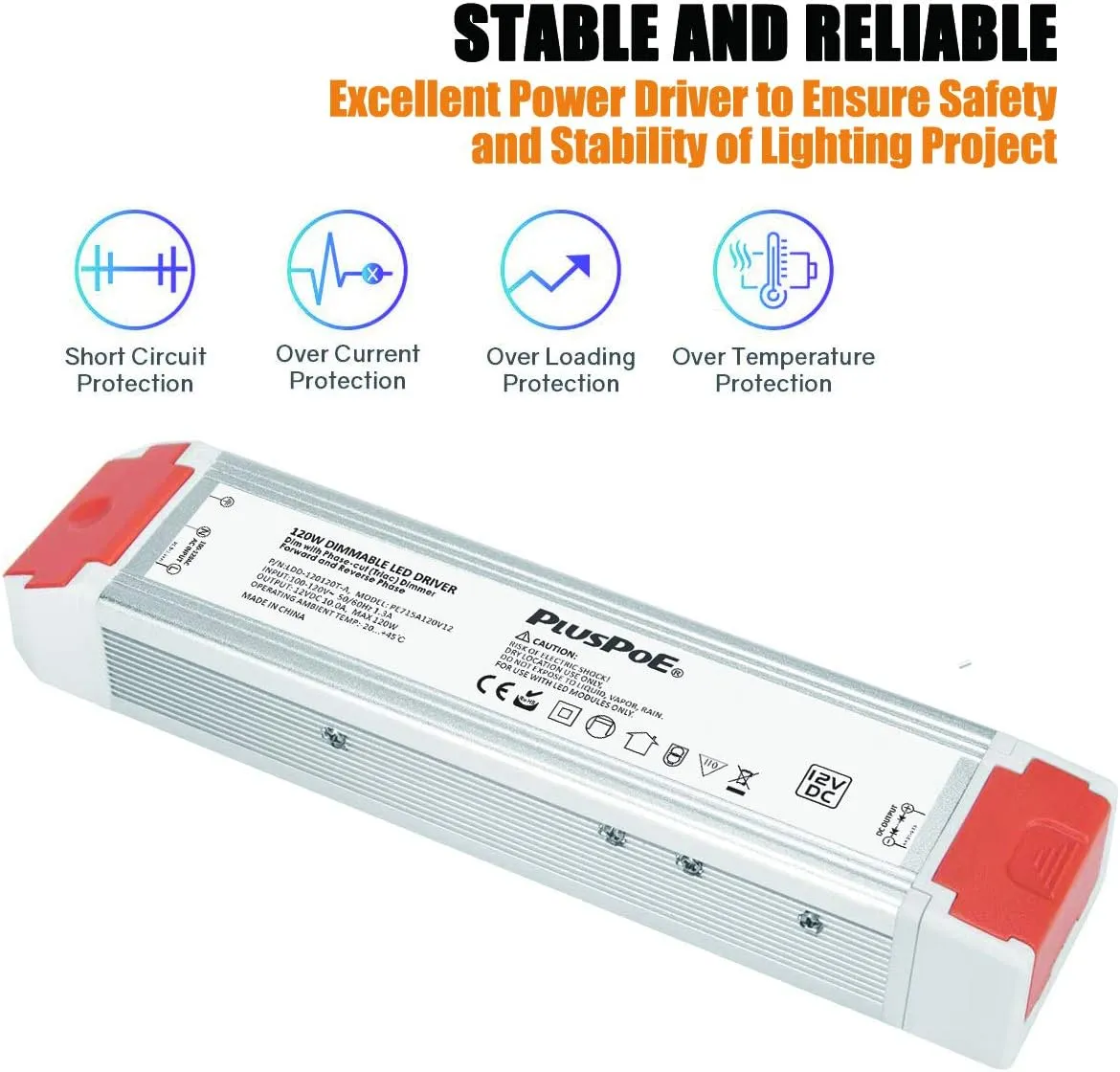

- ✔Safety Protection: Short-Circuit / Over Current / Over Voltage（OVP）/Under Voltage (Blackout Protection) and Auto-recovery Mode.
- ✔5-years After-sevices: If you have problem with our Led dimmable driver or if you want to seek warranty, please contact us through Amazon Buyer-Seller Messaging Service, we will further assist you

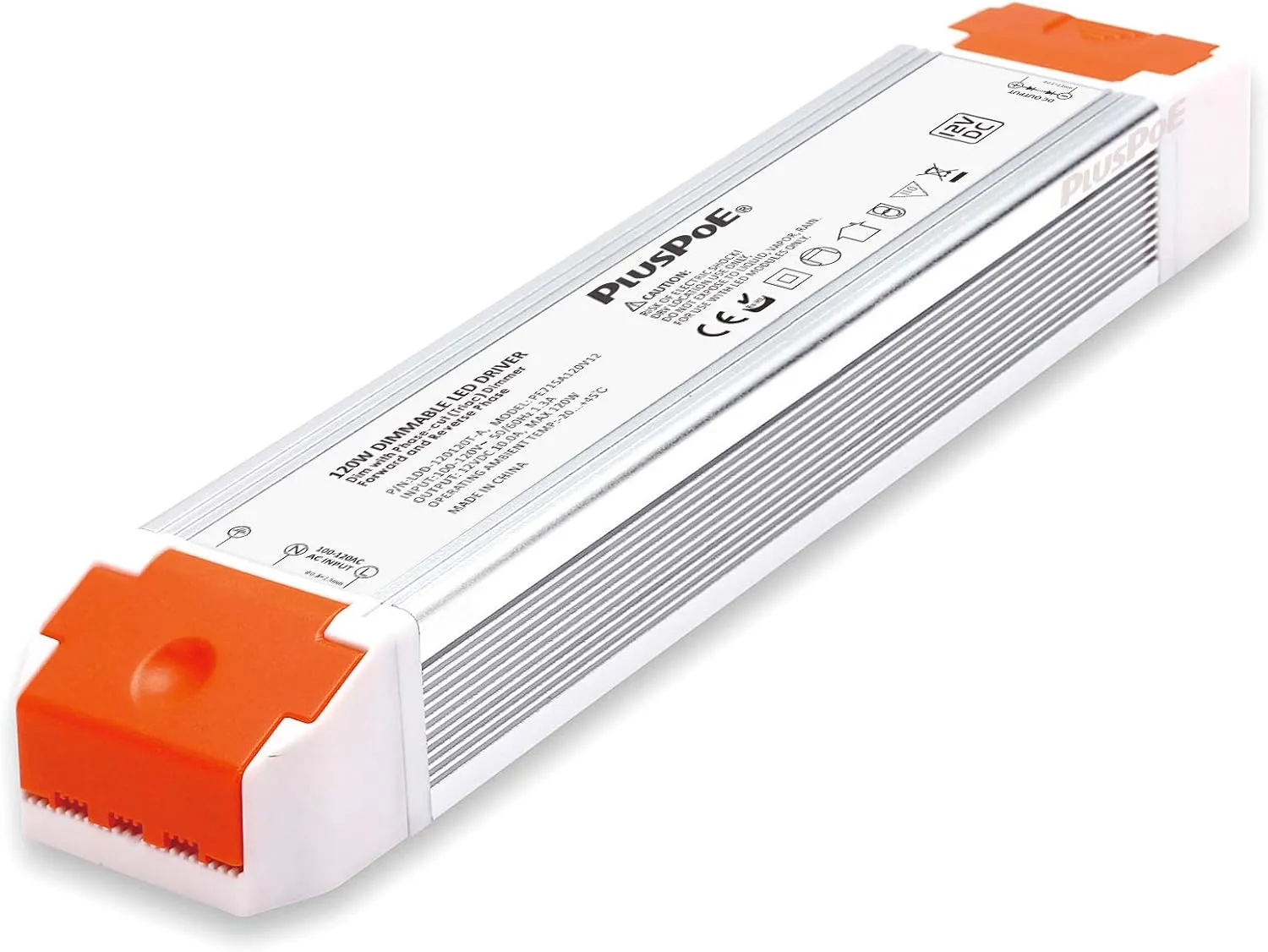

This Dimmable LED transformer is lighter, has greater operating efficency, Better Compatibility, has over-current protection, and eliminates problems with buzzing and overheating.
This is an excellent quality 12V120W Triac dimmable power supply.
Compatible with most AC wall dimmer like Lutron, Leviton and most other household dimmers.
Can be used for many 12v constant voltage LED lights and other applications.
Requires no minimum load and it is very quite without any buzz or humming noise.
Warning: Do not overload. Overload will cause the AC adapter to fail. We are not responsible for misuse of power supply.
It is recommended not to exceed the AC power supply's capacity. Please calculate your load before connecting the power.
Specification:
Output Current: 10A (10000mA) Output Voltage: 12V
Input Voltage: 100V-130V 50/60HZ
Size dimension: 9.53x2.83x1.4in
NON-waterproof use for indoor dry location only.
Specification: Input voltage:AC 90-130V 50/60Hz 0.8A
Output voltage:DC 12VDC MAX 10000mA
PF:0.9 ta=-20℃-45℃ tc=85℃
Output power:120W
Output maximum current:Max 10A
Start-up:<500 mS
Leakage current﹤0.50mA/120VAC
Efficiency (Typ.): 85%
Protection:Short-Circuit / Over Current / Over Voltage and Auto-recovery Mode
Working temperature:- 20 ~ 55 ~C
Working humidity: 20-85% RH
Storage temperature:-40-85 C
Storage humidity: 10-95% RH
Voltage withstand:I/P-O/P:3.75KVAC
Insulation impedance: resistance to I/P-O/P:100M Ohms/500VDC/25 C/70%RH
